32A EVSE Wallbox EV Car Charger Electric Vehicle Charging Station Wall-mounted IP66 Type 2 Cable IEC 62196-2 Level 2 240V 7.6KW

$622.44 0 % $494.00
0 sold
Qty
Product description
Product description

Brand Name: None

Origin: CN(Origin)

Plug Type: Type 2

Input Current: 24-32A

Placement on Vehicle: FRONT

Item Height: 10CM

Item Length: 30CM

Interchange Part Number: LE-F30

Material Type: ABS

AC Power Supply: Single Phase

Voltage: 220-240V

Item Weight: 6.5KG

Other Part Number: IEC 62196-2

Item Width: 20CM

Cord Length: 6-10m

Manufacturer Part Number: Type 2 IEC 62196-2 Plug

Country/Region of Manufacture: CHINA

Charger Type: Charging Station

Rated Current: 32A

Length of Cable: 25Ft/7.6m

IP Rating: IP66

Installation Method: Wall/Stand

Certificate: TUV, CE, FCC, IK10

Operating Temperature: -40°C ~ +70"C

Power: 7.68KW

Diameter the electric wire: 2*8mm²+1*6mm²

RM47085554674295638



32A EVSE Wallbox EV Charger Electric Vehicle Charging Station Wall-mounted IP66 Type 2 Cable IEC 62196-2 220-240V Car Charger 7.68KW for EV Cars



组 12020-09-30

  • 32 Amps, 240V, 7.6kw, Level 2 Home EV Charging Station
  • Easy to use, do not need an APP to run it or home network connection
  • The station uses plastic and ABS material to be stronger. Button start mode and easy installation
  • LCD to display all the car's data on the charging station during charging. You can see the state of charge, including current, voltage and temperature. The screws are fit into the box so you don't have to worry about the screen falling. The 20ft cable leaves enough space between your car and the charging statio



组 22020-09-30



  • Installation Method: Wall/Stand
  • Mode: C(with plug)
  • Certificate: TUV, CE, FCC, IK10
  • IP Rating: IP66
  • Rated Voltage: 220V - 240V
  • Rated Current: 32A
  • Maximum Power: 7.68KW
  • Phase Mode: Single Phase
  • Operating Temperature: -40°C ~ +70"C
  • Enclosure Material: ABS+PC alloy
  • Length of Cable: 25Ft/7.6m
  • Diameter the electric wire: 2*8mm²+1*6mm²



组 32020-09-30



  • EV charger *1
  • User manual *1
  • Installation drawing *1
  • Setscrew *4
  • Metal backboard *1
  • Key *2

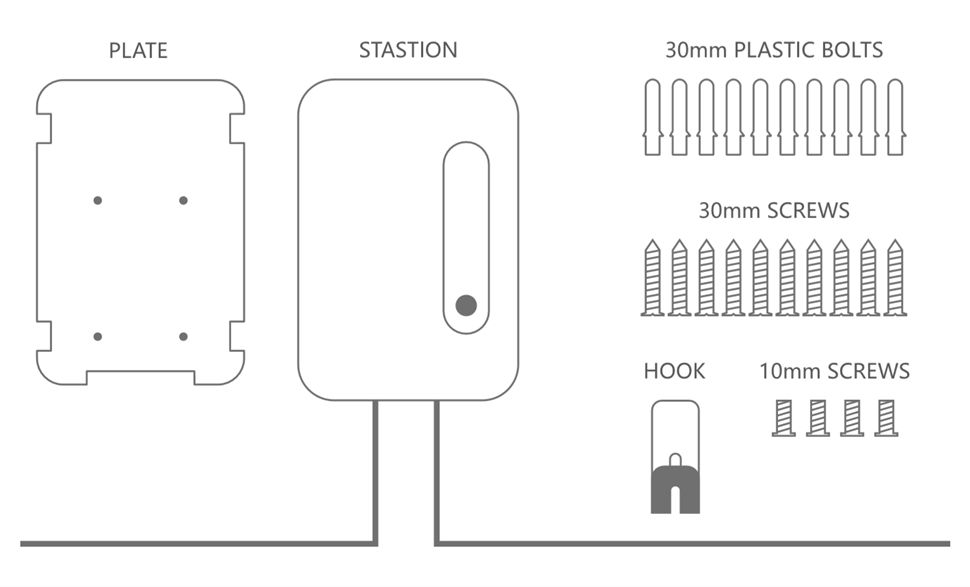

Installation Guide:



1. Drill holes according to the position of the iron plate

2. Hammer the 30mm plastic bolts into the holes

3. Fix the iron plate with 30mm screws on the wall

4. Embed the wall box into iron plateon the wall

5. Mounting screws from both sides. You can put the hook anywhere you need. The cable can be hungon the hook

6. Connect the power wire to the distribution box. This is the final completion picture after you successfully install the wall box



Instruction For Use:



1. Make sure the wall box is connected to the power

2. Press the button on the wallbox to start/stop charging

3. Connect the EV and the wallbox with the charging plug





Type 2 suitable for EV as below:



  • AUDI: Q7 E-Tron, A3 E-Tron, E-Tron Quattro, E-Tron Sportback
  • RENAULT: Zoe, Zoe 2013, Kangoo ZE 2014-2019
  • BMW: i3, i8, 94AH 3Rex, 2 Series, 530e, 22Sxe, 330e, 740e, XS
  • TESLA: X, S, 3. Kia: Niro, Niro Phev, Optima Phev
  • MERCEDES-BENZ: B Class E-Cell, GLE SOOe, E 350e, S500 PHEV, EQC 400, $LS EV, EQA, Vito E -Cell Van
  • PORSCHE: 918 Spyder, Taycan-Mission E, Cayenne, Panamera S PHEV, Panamera 4 E­Hybrid
  • VOLKSWAGEN: E-Up, E-Golf, Golf GTE PHEV, Golf 1.4 TSE, Passat GTE, I.D
  • VOLVO: S90, V90 TS, V60 PHEV, XC90 TS
  • HYUNDAL: Loniq Electric, Loniq Plug-In, Kona
  • MINI S E Countryman 2017. RANGE ROVER P400e. RIMAC Concept One.
  • BYD E6. MORGAN EV. JAGUAR i-Pace. MAHINDRA E20. NISSAN Leaf 201 S.
  • TOYOTA Prius Plug-In-Hybrid 2018. 关注领$3组 32020-08-20-LE-F30-Type2-速卖通详情页_012020-08-20-LE-F30-Type2-速卖通详情页_022020-08-20-LE-F30-Type2-速卖通详情页_032020-08-20-LE-F30-Type2-速卖通详情页_042020-08-20-LE-F30-Type2-速卖通详情页_052020-08-20-LE-F30-Type2-速卖通详情页_062020-08-20-LE-F30-Type2-速卖通详情页_072020-08-20-LE-F30-Type2-速卖通详情页_08f30组 5组 6组 7组 8



Cautions:



  • This is a Mode 3 EV charging station only for Electric Vehicles with Type 2. Don't use it for EVs with other types of inlet.
  • This charging unit has complicated internal structure. Any question, please do not hesitate to contact our Technical Service Team at the first time.
  • Please do not take it apart without any professional technical support.
  • This product is only for EV charging. Please do not use it for any other purpose. ​
  • Failure to follow instructions may result in danger.
  • Children are prohibited from touching charging station.
  • Do not dissemble the charging station while it's operating.
  • Install the charging station away from spark-throwing, dusty or corrosive places.
  • Only use the charging station when it's normally operating and please strictly follow the instructions.
  • The charging station produces high voltage output. You must pay attention to personal safety when using it.

f30 1f30 2x4 转曲 wallbox-LE-F30 欧标-封面200g铜版纸-内页157g铜版纸-骑马订-展开尺寸250x176-成品尺寸-125x176-04x4 转曲 wallbox-LE-F30 欧标-封面200g铜版纸-内页157g铜版纸-骑马订-展开尺寸250x176-成品尺寸-125x176-05组 9组 16


WARRANTY INSTRUCTION:

We have done simulation test according to the design requirements and technical standard before equipment consignment. From the day of purchase, any quality problem of the product can be reflected to the dealer within 12 months.

Any direct damage or malfunction caused by neglect, incorrect use/installation, repair by the users or natural damage are not covered by the warranty. charging-pcd020-美标-详情页_08
